AQR860

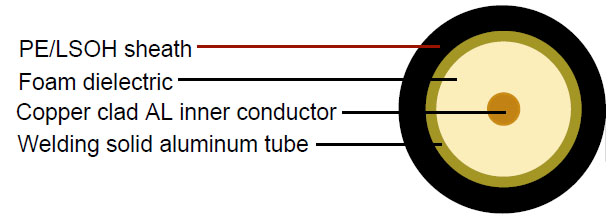

Construction :

  • Inner conductor Copper-clad Aluminium wire Φ5.16 mm
    Dielectric Foam PE Φ20.03 mm
    Outer conductor Welding smooth aluminum tube Φ21.84 mm
    Sheath PE/LSOH Φ24.38 mm
    Messager   optional
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 50 pF/m
    Velocity of propagation 88%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 1.90 Ohm/Km
    Outer conductor resistance 1.06 Ohm/Km
    Installation temperature range -40°C - +85°C
    Operating temperature range -40°C - +85°C
    Screening effectiveness 135 dB
    Cable weight (approx.) 316 kg/km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation(dB/100ft)
    5 0.30 0.09
    50 1.05 0.32
    250 2.30 0.70
    300 2.49 0.76
    350 2.72 0.83
    400 2.89 0.88
    450 3.12 0.95
    500 3.28 1.00
    550 3.48 1.06
    600 3.61 1.10
    750 4.07 1.24
    865 4.36 1.33
    1000 4.72 1.44

Return Loss :

  • 5-30 MHz >30dB
    30-470 MHz >30dB
    470-1000 MHz >30dB
>
